Description

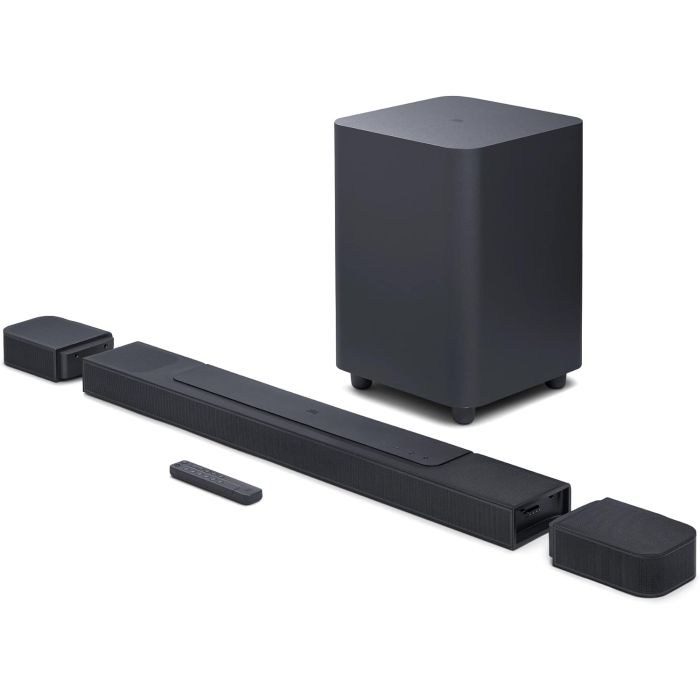

Experience movies, music and games with sound that puts you right in the middle of the action, thanks to 880W of total output power and thunderous bass from the 10" subwoofer. The JBL Bar 1000 has MultiBeam™ and four up-firing drivers—two in the bar and two in the detachable battery-powered surround speakers—to envelop you in a sphere of Dolby Atmos® and DTS:X 3D surround sound with a wide, spacious soundstage with no need to draw extra cables. You'll never miss a word with our PureVoice technology, which makes sure the dialogue is clear even when other sounds are at their loudest. When you're ready for some music, stream your favorite playlist from AirPlay, Alexa MRM, and Chromecast built-in™ and it'll feel like the band is right there. Have a great night out without leaving your living room.

General Specifications

Model: BAR 1000

Sound system: 7.1.4 channel

Power supply: 100 - 240V AC, ~ 50/60Hz

Networked standby power: < 2.0W

Operating temperature: 0°C - 45°C

Audio Specifications

Total speaker power output (Max @THD 1%): 880W

Soundbar output power (Max @THD 1%): 440W

Surround speaker output power (Max @THD 1%): 2x 70W

Subwoofer output power (Max. @THD 1%): 300 W

Soundbar transducer: 5x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters, 2x 2.75" (70mm) up-firing full-range drivers

Surround speaker transducer: 0.75" (20mm) tweeters, 2.75" (70mm) up-firing full-range drivers

Subwoofer transducer: 10” (260mm)

Frequency response: 33Hz - 20kHz (-6dB)

Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Total soundbar dimensions (W x H x D): 1194 x 56 x 125mm / 47" x 2.2" x 4.9"

Main soundbar dimensions (W x H x D): 884 x 56 x 125 mm / 34.8" x 2.2" x 4.9"

Detachable surround speaker dimensions (each) (W x H x D): 155 x 56 x 125 mm / 6.1" x 2.2" x 4.9"

Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight: 3.7 kg / 8.2 lbs

Detachable surround speaker weight (each): 1.4kg / 3.1 lbs

Subwoofer weight: 10 kg / 22 lbs

Packaging dimensions (W x H x D): 1000 x 375 x 475 mm/ 39.4" x 14.8" x 18.7"

Packaging Weight: 19.4 kg / 42.7 lbs

Control and Connection Specifications

USB port: Type A

USB rating: 5V DC, 0.5A

Supporting file format: MP3

MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate: 16 - 48 kHz

MP3 bitrate: 80 - 320 kpbs

Bluetooth version: 5.0

Bluetooth profile: A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range: 2400MHz – 2483.5MHz

Bluetooth transmitter power: <15dBm (EIRP)

Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range: 2412 - 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)

2.4G Wi-Fi transmitter power: < 20dBm (EIRP)

5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless frequency range: 2406 - 2474MHz

2.4G wireless power: ＜10dBm (EIRP）

Battery

Lithium battery: 3.635V, 3283mAh

What's in The Box?

1x Main soundbar

2x Detachable wireless surround speakers

1x Wireless subwoofer

Remote control with 2 x batteries

Power cords (up to 8pcs depending on region SKUs)

1 x HDMI cable

2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws

4 x Side caps

Quick start guide

Safety instruction and Warranty card

Wall mount template
