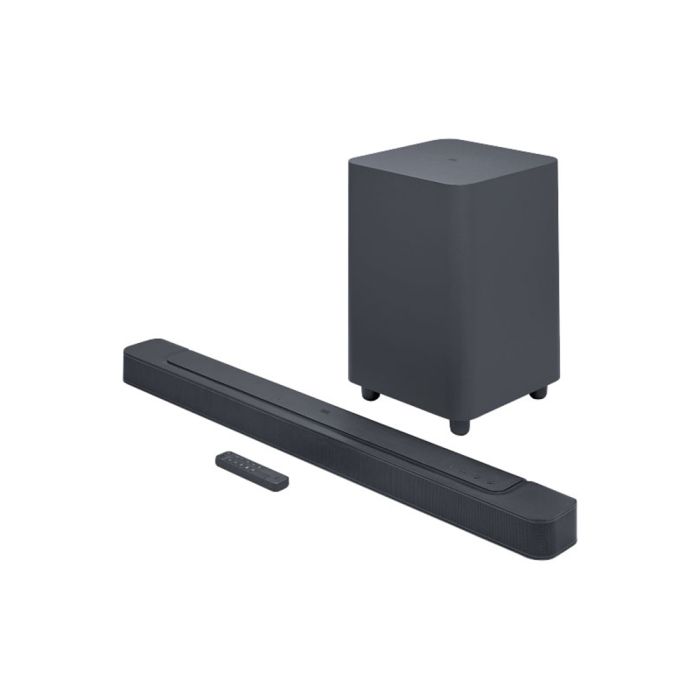

JBL BAR 500

Description

What's on the menu tonight? Movies, music or gaming? The JBL Bar 500 brings your movies to life with MultiBeam™ and Dolby Atmos® 3D surround sound. While PureVoice technology optimizes voice clarity to ensure you never miss a word. Feel the thrilling bass from the wireless 10" subwoofer. And with AirPlay, Alexa Multi-Room Music (MRM) and Chromecast built-in™, you've got over 300 easy streaming options to choose from, whether you want to dance or you're ready to relax. Whatever you're in the mood for, the JBL Bar 500's got you covered.

General Specifications

Power supply: 100 - 240V AC, ~ 50/60Hz

Networked standby power: < 2.0 W

Operating temperature: 0°C - 45 °C

Audio Specifications

Total speaker power output (Max @THD 1%): 590W

Soundbar output power (Max @THD 1%): 290W

Subwoofer output power (Max. @THD 1%): 300 W

Soundbar transducer: 4x (46x90)mm racetrack drivers, 3x 0.75" (20mm) tweeters

Subwoofer transducer: 10” (260mm)

Frequency response: 35Hz - 20kHz (-6dB)

Audio inputs: 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D): 1017 x 56 x 103.5 mm / 40’’ x 2.2’’ x 4’’

Subwoofer dimensions (W x H x D): 305 x 440.4 x 305 mm / 12" x 17.3" x 12"

Soundbar weight: 2.8kg/ 6.2 lbs

Subwoofer weight: 10 kg / 22 lbs

Packaging dimensions (W x H x D): 1105 x 370 x 475 mm/ 43.5" x 14.6" x 18.7"

Packaging Weight: 16.2 kg / 35.6 lbs

Control and Connection Specifications

USB port: Type A

USB rating: 5V DC, 0.5A

Supporting file format: MP3

MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate: 16 - 48 kHz

MP3 bitrate: 80 - 320 kpbs

Bluetooth version: 5.0

Bluetooth profile: A2DP 1.2, AVRCP 1.5

Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz

Bluetooth transmitter power: <15 dBm (EIRP)

Wi-Fi network: IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)

2.4G Wi-Fi transmitter frequency range: 2412 - 2472 MHz (2.4 GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)

2.4G Wi-Fi transmitter power: < 20 dBm (EIRP)

5G Wi-Fi transmitter frequency range: 5.15 - 5.35GHz, 5.470-5.725GHz, 5.725 - 5.825GHz

5G Wi-Fi transmitter power: 5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)

2.4G wireless transmitter frequency range: 2406 - 2474MH

2.4G wireless transmitter power: ＜10dBm (EIRP）

What's in The Box?

1 x Main Soundbar

1 x Wireless subwoofer

Remote control with 2 x batteries

Power cords (up to 8pcs depending on region SKUs)

1 x HDMI cable

2 x L-shape wall-mount bracket with screws

Quick start guide

Safety Instruction and Warranty Card

Wall mount template
